GRASS 5.7: Vector overlay/clipping tutorial

Some vector overlay/clipping examples [UP]

To illustrate the GRASS vector overlay/clipping capabilities, we use data from VMAP 0, in particular the political boundaries of Germany. The data set was extracted, reprojected to LatLong/WGS84 and converted to SHAPE with 'ogr2ogr'.
In a LatLong GRASS location we can do:

Import of this SHAPE file:

v.in.ogr polbnda_germany.shp out=polbnda_germany
d.vect polbnda_germany

Digitizing a triangle:

v.digit -n clipmap
d.erase ; d.vect polbnda_germany col=blue
d.vect clipmap col=green

Vector union (OR):

v.overlay ainput=polbnda_germany binput=clipmap output=clipmap_union operator=or -t
d.erase ; d.vect clipmap_union

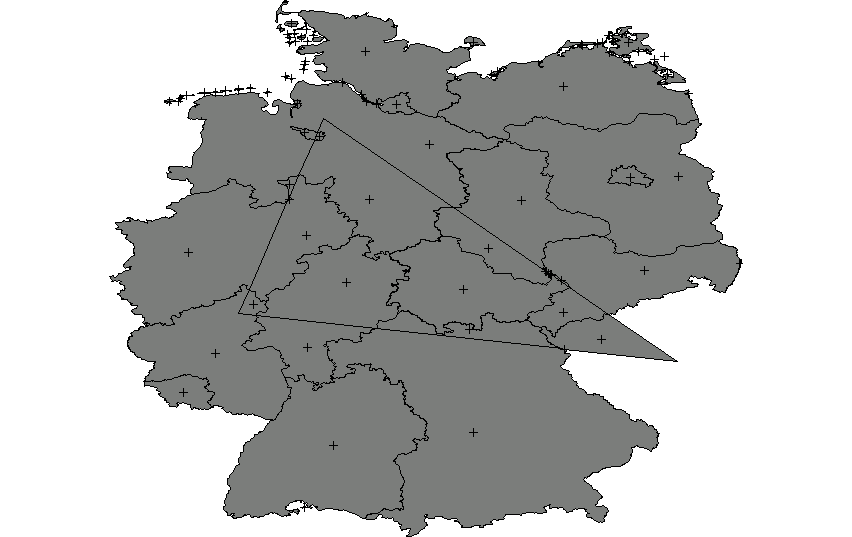

Vector intersection (AND):

v.overlay ainput=polbnda_germany binput=clipmap output=clipmap_intersection operator=and -t
d.erase ; d.vect clipmap_intersection

Vector cut out: features from polbnda_germany NOT in clipmap (NOT):

v.overlay ainput=polbnda_germany binput=clipmap output=clipmap_not operator=not -t
d.erase ; d.vect clipmap_not

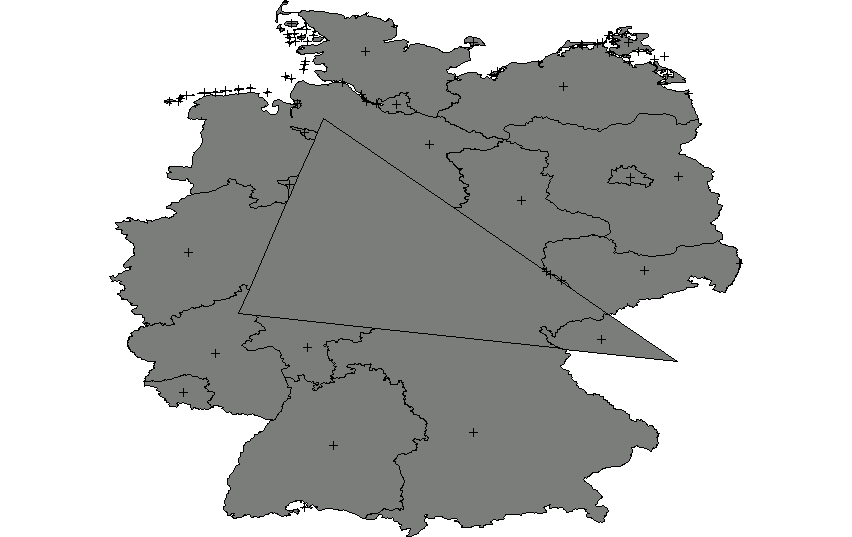

Vector features from either polbnda_germany or clipmap but not those from polbnda_germany overlayed by clipmap (XOR)

v.overlay ainput=polbnda_germany binput=clipmap output=clipmap_xor operator=xor -t
d.erase ; d.vect clipmap_xor
