wxGUI

Table of contents

DESCRIPTION

wxGUI is a native Graphical User Interface (GUI) for GRASS GIS. Its main features include displaying geographical data in 2D and 3D, calling GRASS GIS modules, and interacting with data.

Overview

The GUI is composed of three main components:

Layer Manager

The Layer Manager provides an interactive graphical interface for creating and managing GRASS displays. There is a toolbar to manage displayed map layers, a layer tree frame in which map layers for display are organized, a command output window tab, and interactive command line prompt. On Linux and Windows platforms, the layer manager also has a menu bar with a set of pull-down menus for all GRASS GIS functions (analysis, file I/O, GIS configuration and management); on a Mac, the GRASS functions menu is at the top of the screen.

screenshot

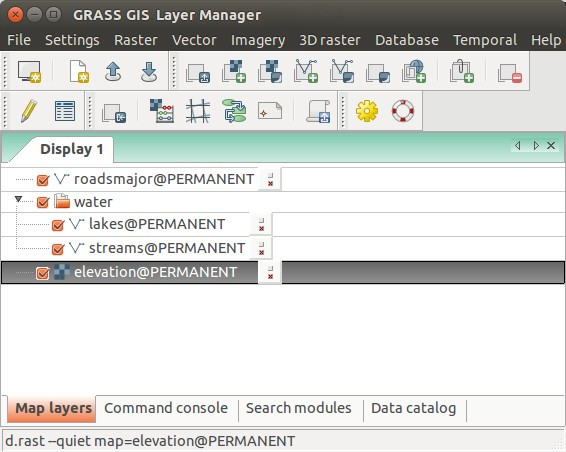

Figure: Layer Manager screenshot on Ubuntu

The top left button of the toolbar opens a new Map Display Window. Each map display has a unique set of layers to display and region settings. Other toolbar buttons add layers of different types for display in the selected map display window. There are additional buttons for saving or opening workspace file, and others.

Map layers are listed in the window frame below the toolbar. Layers can include raster and vector maps, vector labels, and commands (where any GRASS command can be written). Layers are displayed as arranged in the layer tree: the bottom layer is displayed first and the top layer is displayed last, as if the layers were a series of stacked overlays.

The check box to the left of each layer makes it active or inactive for display. Only active layers are displayed/redisplayed when the display button is pressed. Layers can be organized into groups; entire groups can be activated or deactivated for display. Layer tree composition can be saved to a workspace file and opened in subsequent sessions, restoring all layers and their display options.

A right mouse click on a layer or left clicking the button to the right of the layer opens a dropdown menu with options to remove or rename the layer (not the actual map), change its display properties (d.rast and d.vect options such as color, symbol, etc.), show its metadata (r.info, v.info) or attributes, if applicable.

A left mouse double click on a layer opens GUI for its display options These options are those for the d.* command for each layer type (d.rast, d.vect, or d.grid, for example).

Layer Manager Toolbar

icon  Start new map display
Opens a new map display and creates empty layer tree tab in Layer Manager.
icon  Create new workspace
Removes all layers from the layer tree and creates a new, empty tree where new layers can be added.
icon  Open existing workspace file
Opens an previously saved workspace file, containing a set of display layers and their option settings.
icon  Save current workspace to file
Saves current set of layers and their options to a workspace file.
icon  Load map layers into workspace
Loads selected raster or vector maps into current layer tree.
icon  Add raster map layer
Adds raster map to layer tree, see d.rast.
icon  Add various raster map layers (RGB, HIS, shaded relief...)
Opens a dropdown menu that allows user to select to:
icon  Add 3D raster map layer
Adds 3D raster map to layer tree.
icon  Add RGB raster layer
Combines and displays three raster maps defined as red, green, and blue channels to create an RGB color map, see d.rgb.
icon  Add HIS raster layer
Combines and displays two or three raster maps defined as hue, intensity, and (optionally) saturation channels to create a color map, see d.his.
icon  Add shaded relief raster map layer
Adds shaded relief raster map layer, see r.relief and d.shade.
icon  Add raster arrows layer
Adds map of raster cells with directional arrows drawn. Arrow direction and length are determined by separate aspect/directional map and (optional) slope/intensity map, see d.rast.arrow.
icon  Add raster numbers layer
Adds map of raster cells with numbers representing the cell values, see d.rast.num.
icon  Add vector map layer
Adds a vector map layer, see d.vect.
icon  Add various vector map layers (thematic, chart...)
Opens a dropdown menu that allows user to select to:
icon  Add thematic area (choropleth) map layer (for all vector types)
Adds layer for thematic display values from a numeric attribute column associated with a vector map. Options include: thematic display type (graduated colors or point sizes), methods for creating display intervals, SQL query of attribute column to limit vector objects to display, control of point icon types and sizes, control of thematic color schemes, creation of legend for thematic map, and saving the results of thematic mapping to a ps.map instructions file for later printing, see d.vect.thematic.
icon  Add thematic chart layer (for vector points)
Adds layer in which pie or bar charts can be automatically created at vector point locations. Charts display values from selected columns in the associated attribute table. Options include: chart type, layer and attributes to chart, chart colors, and chart size (fixed or based on attribute column), see d.vect.chart.
icon  Add group
Adds an empty group. Layers can then be added to the group.
icon  Add grid or vector labels overlay
Opens a dropdown menu that allows user to select to:
icon  Add overlay grids and lines
Adds layer to display regular grid (for all locations) see d.grid
icon  Add labels layer for vector objects (from existing labels file)
Add a layer of text from a labels file for vector objects created with the v.label module. A labels file can also be created with a text editor, see d.labels.
icon  Add geodesic line layer
Add layer to display geodesic line for latitude/longitude locations only, see d.geodesic
icon  Add rhumbline layer
Add layer to display rhumblines (for latitude/longitude locations only), see d.rhumbline.
icon  Add command layer
Adds a layer in which a GRASS GIS command or command list can be entered. For a command list use the semi-colon (";") symbol as a separator. For example:
d.rast soils;d.rast -o roads;d.vect streams col=blue
Note that when an option of the command contains spaces, you need to "escape" them with the backslash ('\') character, for example:
d.text text=Population\ density
icon  Delete selected layer
Removes selected map layer or map layer group from layer tree.
icon  Edit vector maps
Opens vector digitizer to allow editing selected vector map.
icon  Show attribute table
Opens attribute table manager for selected vector map.
icon  Import raster or vector data
icon  Import raster data
Import selected raster data into GRASS using r.in.gdal and load them into current layer tree.
icon  Link external raster data
Link selected external raster data as GRASS raster maps (using r.external) and load them into current layer tree.
icon  Set raster output format
Define external format for newly created raster maps (see r.external.out for details)
icon  Import vector data
Import selected vector data into GRASS using v.in.ogr and load them into current layer tree.
icon  Link external vector data
Link selected external vector data as GRASS vector maps (using v.external) and load them into current layer tree.
icon  Set vector output format
Define external format for newly created vector maps (see v.external.out for details)
icon  Raster Map Calculator
Launches Raster Calculator GUI front-end for r.mapcalc.
icon  Graphical Modeler
Launches graphical modeler to create models and run them.
icon  Georectifier Tool
Launches GCP Manager to create, edit, and manage Ground Control Points.
icon  Cartographic Composer
Launches Cartographic Composer to create interactively hardcopy map outputs.
icon  Show GUI settings
Opens dialog to change GUI settings.
icon  Show help
Opens GRASS manual.

Map Display Window

The map display window includes toolbar that can be docked and undocked from the window, a map canvas where a map composition of one or more layers is displayed, and a statusbar with information about the geographic region of the maps displayed.

Map Display Window

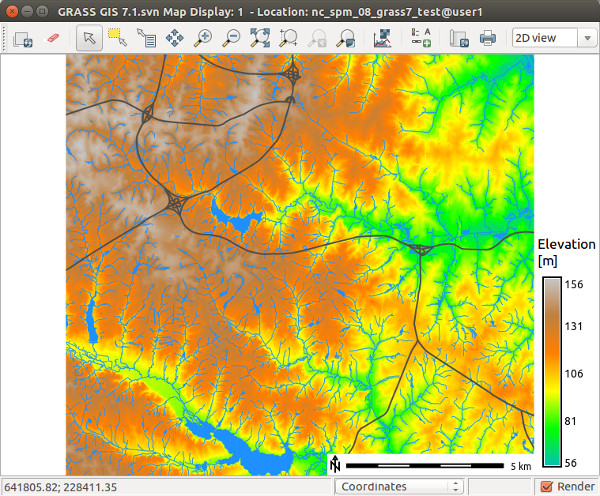

Figure: Map Display screenshot on Ubuntu

Each Map Display Window has a unique layer tree (in the layer manager) and geographic region setting. At the top of the window is a toolbar with buttons to manage the map in the display (render, erase, zoom and pan), for query and and analysis (distance measurement, profile, and histogram creation), to overlay map elements onto the display (scale, north arrow, legend, and custom text), and to export or print the display.

In the statusbar, the user can choose to display the geographic coordinates under the cursor, current geographical region extent, computational region (including graphical visualization in map display), map display geometry (number of rows, columns, resolution) and map scale. Checking the render button in the statusbar will cause the map display to update automatically any time a map is added to, removed from, or changed in its layer tree.

It is important to note that zooming in any display will have no effect on the 'computational region' setting (set with g.region). Only by selecting the 'Set current region to match display' item in the zoom menu (in the map display toolbar) will the current display extents be copied to the computational region extents.

Map Display Toolbar

icon  Re-render display
Re-renders all active map layers regardless of whether they have changed or not, see d.redraw.
icon  Erase display
Erases the currently selected map display to a white background, see d.erase.
icon  Pointer
Select arrow cursor for map display.
icon  Select features from vector map
Interactively select features from given vector map. Selection can be stored to a new vector map, see v.what and v.extract.
icon  Query raster/vector maps
Query selected raster, RGB raster (all three map channels will be queried), or vector map(s) using the mouse. Map(s) must be selected before query. Vector charts and thematic vector maps cannot be queried. The results of the query will be displayed in a dialog. See r.what, v.what.
icon  Pan
Interactive selection of a new center of view in the active display monitor. Drag the pan cursor while pressing the left mouse button to pan. Panning changes the location of the region displayed but not the size of the area displayed or the resolution. Panning does not affect the computational region for other GIS processes, see g.region.
icon  Zoom in
Interactive zooming with the mouse in the active display monitor. Drawing a box or just click with the mouse (left button) and zoom-in cursor causes the display to zoom in so that the area defined by the box fills the display. The map resolution is not changed. Clicking with the zoom-in cursor causes the display to zoom in by 30%, centered on the point where the mouse is clicked. Zooming resets the display region extents (both size and location of area displayed). It does not affect the computational region for other GIS processes, see g.region.
icon  Zoom out
Interactive zooming with the mouse in the active display monitor. Drawing a box or just click with the mouse (left button) and zoom-out cursor causes the display to zoom in so that the area displayed shrinks to fill the area defined by the box. The map resolution is not changed. Clicking with the zoom-out cursor causes the display to zoom out by 30%, centered on the point where the mouse is clicked. Zooming resets the display region extents (both size and location of area displayed). It does not affect the computational region for other GIS processes, see g.region.
icon  Zoom to selected map(s)
Set zoom extent based on selected raster or vector maps. Zooming resets the display region extents (both size and location of area displayed). It does not affect the computational region for other GIS processes, see g.region.
icon  Zoom to computational region extent
Set zoom extent based on the current computational region extent, see g.region.
icon  Return to previous zoom
Returns to the previous zoom extent. Up to 10 levels of zoom back are maintained, see g.region.
icon  Various zoom options
Opens a dropdown menu that allows user to:
  • Zoom to default region
  • Zoom to saved region. Zooms to previously saved named region.
  • Set computational region extent from display. The computational region (the mapset's WIND file) is set to match the current display extent (does not change the resolution), see g.region.
  • Set computational region extent interactively. The computational region is set simply by drawing a box with the left mouse button on Map Display.
  • Set computational region from named region. This option doesn't affect display zoom.
  • Save display geometry to named region
  • Save computational region to named region
icon  Analyze menu
Opens a dropdown menu with:
icon  Measure distance
Interactive measurement of lengths defined with the mouse. The length of each segment and the cumulative length of all segments measuered is displayed in the command output window frame. Lengths are measured in the current measurement unit. Double-click to switch off measuring.
icon  Measure area
Interactive measurement of area defined with the mouse. Area is measured in the current measurement unit. Double-click to switch off measuring.
icon  Profile surface map
Interactively create profile of a raster map. Profile transect is drawn with the mouse in map display. The profile may be of the displayed map or a different map. Up to three maps can be profiled simultaneously.
icon  Create bivariate scatterplot of raster maps
Interactively create bivariate scatterplot of raster maps.
icon  Create histogram of raster map
Displays histogram of selected raster map or image in new window.
icon  Create histogram with d.histogram
Displays histogram of selected raster map or image in new window, see d.histogram.
icon  Vector network analysis tool
See tool's manual page.
icon  Add overlay
opens a dropdown menu that allows user to
icon  Add raster map legend
Adds layer to display with legend of selected raster map, see d.legend.
icon  Add scalebar
Adds layer to display a scalebar. Options include scalebar placement (using screen coordinates or a mouse), scalebar format, and scalebar colors, see d.barscale.
icon  Add north arrow
Adds layer to display a north arrow. Options include north arrow placement (using screen coordinates or a mouse), north arrow style and color, see d.northarrow.
icon  Add text layer
Adds layer to display a line of text using default GRASS font (selected with d.font). Options include: text placement (screen coordinates); and text size, bolding, and color, see d.text.
icon  Save display to graphic file
Save the visible image in map display to different raster graphic formats.
icon  Print map
Prints map on system native printer or PostScript device; saves visible map display (including PostScript text and labels) to PDF or EPS file.
Map display mode
Opens a dropdown menu for selecting different display mode
2D view
Normal GIS display. All active layers are composited and displayed in 2D mode.
3D view
Experimental replacement for NVIZ. Displays all active layers in 3D perspective using OpenGL. A new control panel opens to manage the 3D view. 3D view can be zoomed, panned, rotated, and tilted. The vertical exaggeration of rasters and 3D vectors can be set. Various color and lighten settings are possible. Not yet functional for Windows platforms
Vector digitizer
Puts display into vector digitizing mode and opens a new digitizing toolbar. The user can digitize a new vector map or edit an existing map.
Raster digitizer
Puts display into raster digitizing mode and opens a new digitizing toolbar. The user can digitize a new raster map or edit an existing map.

Keyboard short-cuts

Layer Manager

Ctrl+Tab
Switch 'Layers' and 'Console' tab
Ctrl+Q
Quit
Workspace
Ctrl+N
Create new workspace
Ctrl+O
Load workspace from file
Ctrl+S
Close workspace
Layers
Ctrl+Shift+L
Add multiple raster or vector map layers to current map display
Ctrl+Shift+R
Add raster map layer to current map display
Ctrl+Shift+V
Add vector map layer to current map display
Ctrl+W
Close current map display
Console
Tab
Show command tooltips
Esc
Hide command tooltips
Ctrl+Space
Show auto-complete suggestions
Up/Down
List command history
Enter
Run command
Ctrl++
Increase font size (numerical keyboard plus key)
Ctrl+-
Decrease font size (numerical keyboard minus key)
Ctrl+mouse wheel
Increase or decrease font size

Map Display

F11
Fullscreen mode (toggle on/off)

Starting the graphical user interface

If the wxGUI is not the default user interface, it can defined as default by typing at the GRASS GIS command line prompt:
g.gui -u wxpython
Alternatively it may be defined in GISRC file ($HOME/.grass7/rc on GNU/Linux, $APPDATA\GRASS7\rc on MS Windows) by GUI variable
GUI: wxpython
or by the environmental variable GRASS_GUI.

The GUI can be quit by selecting the 'File -> Exit GUI' menu item. On MS Windows when GRASS is launched without an interactive command line this will end the entire GRASS session. In other cases the terminal window will remain running; type exit at the command prompt to end the GRASS session.

The GUI can be restarted from the GRASS command line prompt by typing

g.gui
or
g.gui wxpython
To restart with previously saved workspace file:
g.gui wxpython workspace=file.gxw

The user can also start GRASS from the shell command line with the wxGUI specifying the -gui (or -wxpython) switch:

grass72 -gui

Background information

wxGUI is a native Graphical User Interface (GUI) for GRASS GIS written in Python using wxPython library.

SEE ALSO

wxGUI components
wxGUI module dialogs wxGUI toolboxes (menu customization)

See also wxGUI wiki page (especially various video tutorials), and Quick wxGUI Tutorial.

AUTHORS

Martin Landa, FBK-irst (2007-2008), Trento, Italy, and Czech Technical University in Prague, Czech Republic
Michael Barton, Arizona State University, USA
Daniel Calvelo Aros
Jachym Cepicky
Markus Metz, Germany
Anna Kratochvilova, OSGeoREL, Czech Technical University in Prague, Czech Republic
Vaclav Petras, OSGeoREL, Czech Technical University in Prague, Czech Republic
Stepan Turek, OSGeoREL, Czech Technical University in Prague, Czech Republic
Tereza Fiedlerova, OSGeoREL, Czech Technical University in Prague, Czech Republic
Matej Krejci, OSGeoREL, Czech Technical University in Prague, Czech Republic

Icons created by Robert Szczepanek, Poland (Git repository)
